Baer Brake SystemsMore from Baer Brake Systems

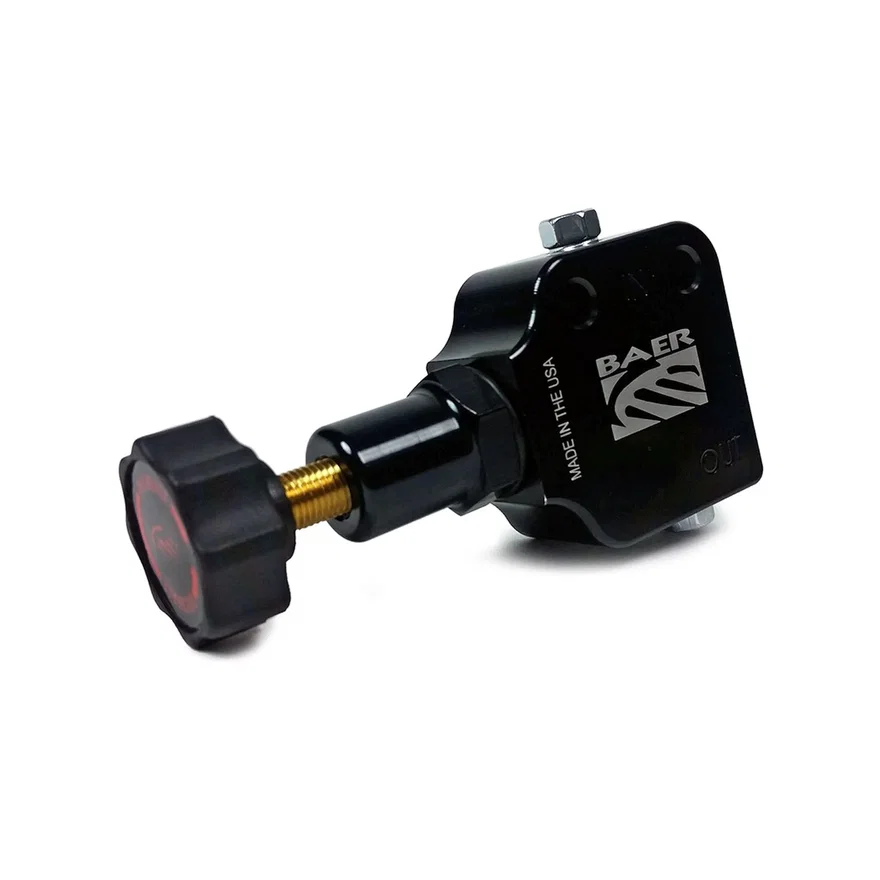

Baer Brake Systems Brakes Black General Fit Adjustable Proportioning Valve, Inline, with 3/8-24 Fittings

Part # 2000035SKU BAE2000035

Universal fit

Specifications
BrandBaer Brake Systems
Part typeBrake Proportioning Valve
Adjustment StyleKnob
Box Count1
BrandBaer Brakes
CategoryBrake
ColorBlack
Connector For Warning LightNo
Emission Code6
Export DescriptionBrake Components
FinishBlack anodized
Fittings IncludedYes
Grade TypePremium
Includes1x Proportioning Valve, 2x Brass Seats, 2x Tube Nuts
Inlet Fitting3/16" Inverted Flare and Tube Nuts w/ Brass Seat
Inlet Port Inside Diameter3/8-24 in
Inlet Port Quantity1
MaterialAluminum
Mounting Bracket IncludedNo
Mounting Hardware IncludedNo
Mounting Hole Quantity2
Outlet Fitting3/16" Inverted Flare and Tube Nuts w/ Brass Seat
Outlet Port Inside Diameter0.375 in
Outlet Port Quantity1
Outlet Port Size3/8-24 in
part typeBrake Proportioning Valve
Port ExitIn-line
Product LineGeneral Fit Proportioning Valve
Product TypeAdjustable Proportioning Valve
QuantitySold Individually
Removable SeatsYes
SeriesRemaster
UPC / GTIN00844165002376
WarrantyManufacture Limited 1 Year Warranty Warranty
  • Includes tube nuts and brass seats
  • 3/8-24 Thread, IFF w/included seats, Straight (Banjo) w/o seats
  • Compatible with most brake systems
  • Made in the USA
  • Laser etched body
  • Sold Individually

Description

A Proportioning valve is recommended on 4 wheel disc brake applictions without ABS. This valve allows you to adjust the increase rate of the line pressure to the rear wheels for optimum overall braking performance with a trun of the knob. Featuring removable brass seats that when installed create a 3/16" inverted flare seat or when removed can accept banjo or straight 3/8-24 fittings. The valve includes 2) brass seats and 2) 3/8” x 24 tube nuts.
