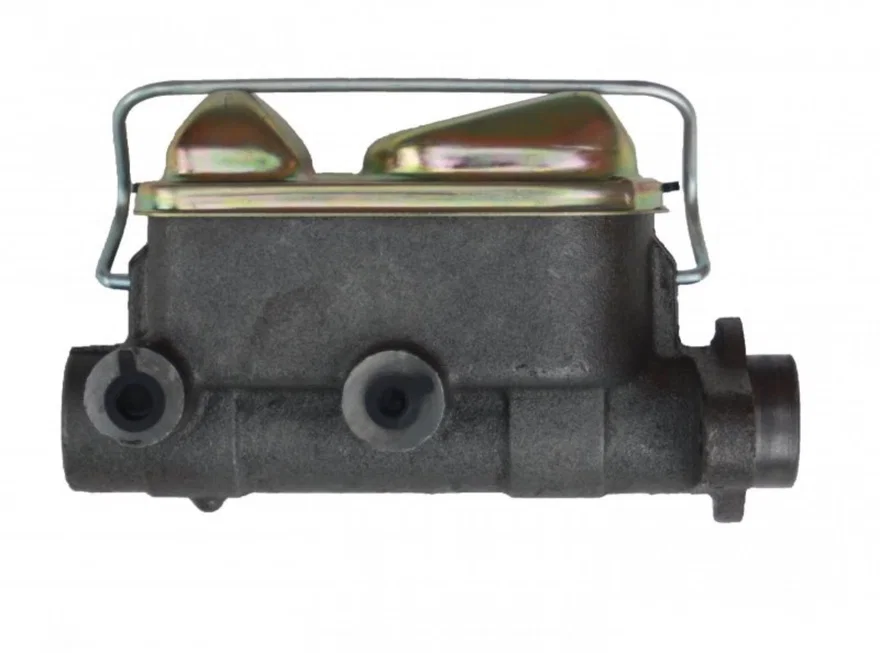

Leed Brakes Master cylinder 15/16 inch bore Ford style with left side outlets
Part # MC011SKU LEEMC011
Universal fit
| Brand | Leed Brakes |
|---|---|
| Part type | Brake Master Cylinder |
| Bleeder Hoses Included | Yes |
| Bleeder Screw Included | No |
| Bore Type | Straight |
| Brake Booster Included | No |
| Brake Pressure Switch Required | No |
| Dust Boot Included | No |
| Gasket Or Seal Included | Yes |
| Grade Type | Standard Replacement |
| Master Cylinder Bore Diameter | 0.937 in |
| Master Cylinder Bore Size | 15/16 in |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Finish | Natural |
| Master Cylinder Included | Yes |
| Master Cylinder Material | Cast Iron |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Diameter | .400 in |
| Mounting Hole Quantity | 2 |
| Piston Quantity | 2 |
| Port Quantity | 2 |
| Primary Bore Diameter | .937 in |
| Primary Outlet Flare Type | Inverted |
| Primary Outlet Thread Size | 1/2" - 20 |
| Primary Outlet Thread Type Standard | UNF |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Material | Cast Iron |
| Reservoir Style | Integral |
| Reservoir Type | Dual |
| UPC / GTIN | 00887753641649 |
| Warranty | Limited Warranty, See PDF |
- Manufactured to OE specifications
